  1. RULES
  2. Decision Table

Binding to Model

Binding Input and Output model to Decision Table in decision table designer.

Last updated 8 months ago

Was this helpful?

Setting Up Binding to the Input & Output Model

After creating the , you need to bind these models to the conditions and results in the Decision Table Designer:

  • Input Model: Bound to condition columns.

  • Output Model: Bound to result columns.

You can select any leaf from the input/output model as a condition or result variable.

Note that you cannot select a root that contains any child as a condition/result variable.

Example of binding (Input Model):

// JSON Editor

{
  "delivery": {
    "distance": {
      "car": {},
      "ship": {},
      "plane": {}
    },
    "tariff": {}
  },
  "package": {
    "weight": {},
    "longestSide": {}
  }
}

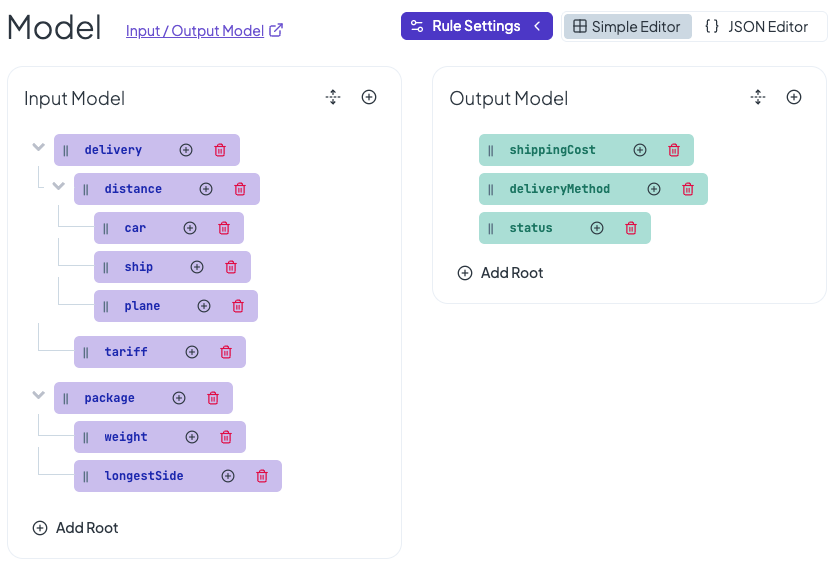

Simple Editor:

From this Input Model, the following values can be selected as condition values:

  • delivery.distance.car

  • delivery.distance.ship

  • delivery.distance.plane

  • delivery.tariff

  • package.weight

  • package.longestSide

Binding Models to Conditions and Results

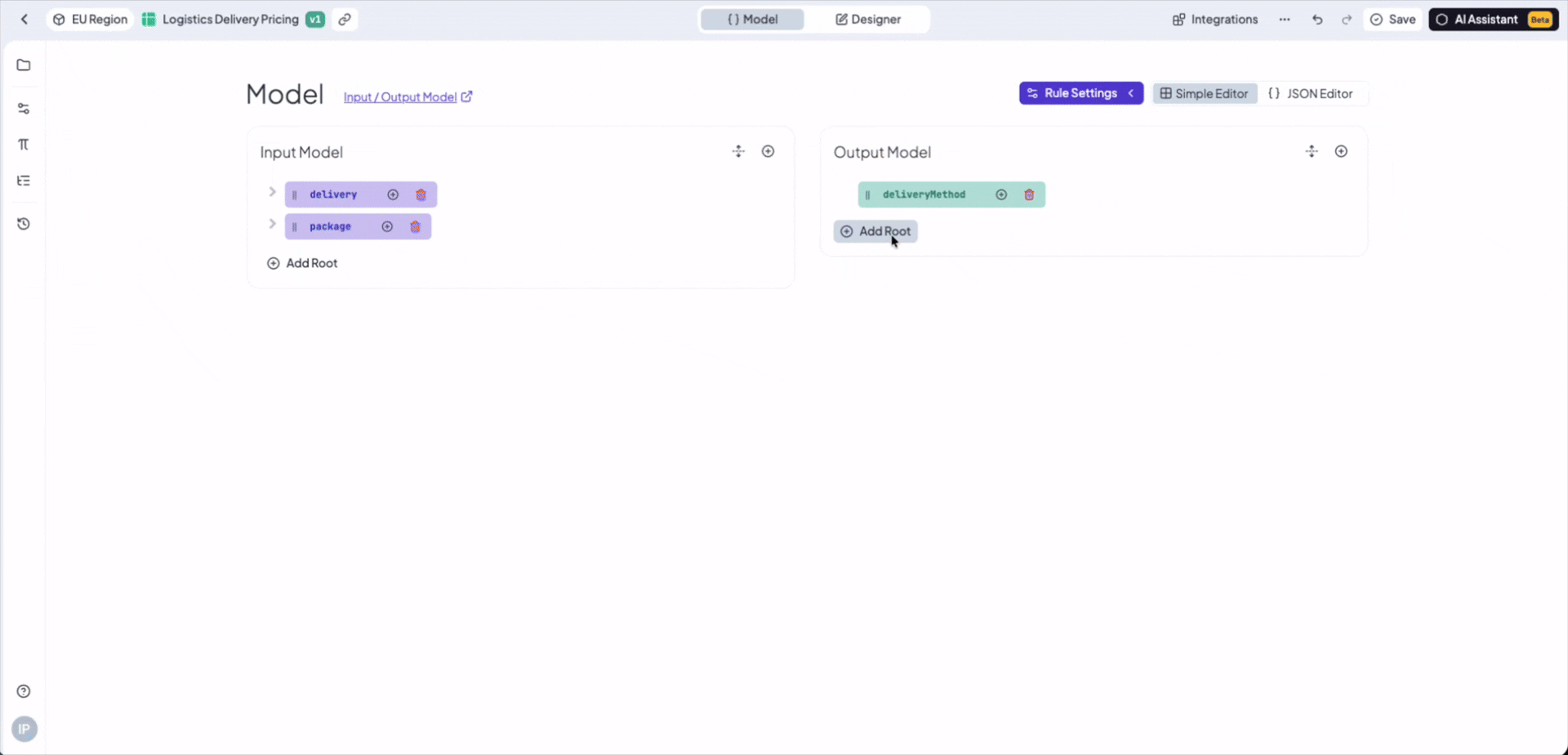

  1. Navigate to the Decision Table Designer section.

  2. To bind the Input Model to Conditions:

    • Create a new condition column.

    • Select the condition variable in the column header.

    To bind the Output Model to Results:

    • Create a new result column.

    • Select the result variable in the column header.

It is also possible to bind the condition columns to or . More information is in .

input and output model
rule variables
calculation column variables
Table Designer
