  1. Decision tables
  2. Table Operations

Sorting

Sorts the values in the column in ascending/descending order

Was this helpful?

Sort Values in Decision Tables

The sorting feature helps you rearrange the rows of your table in either ascending or descending order based on the values in a specific column.

How to Apply Sorting

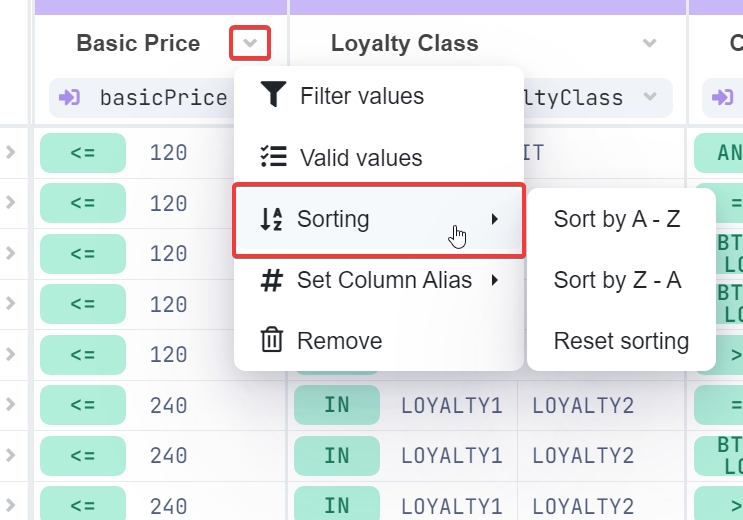

  1. Access Sorting: Click the arrow icon in the header of the column you want to sort, then select Sorting.

  2. Choose Sort Order:

    • Sort by A-Z (ascending)

    • Sort by Z-A (descending)

Managing Sorting

  • Only one column can be sorted at a time. Applying sorting to another column will reset the sorting of the previous one.

  • When a column is actively sorted, a sorting icon will appear in the column header.

  • To change the sorting direction, click the arrow icon in the column header, select Sorting, and choose the desired order.

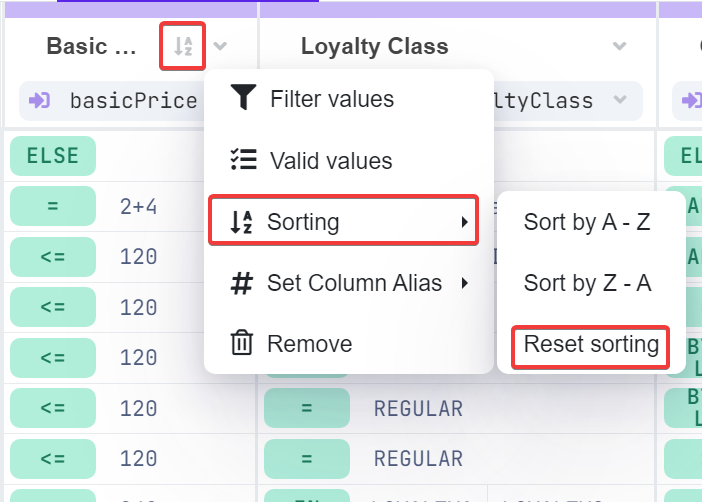

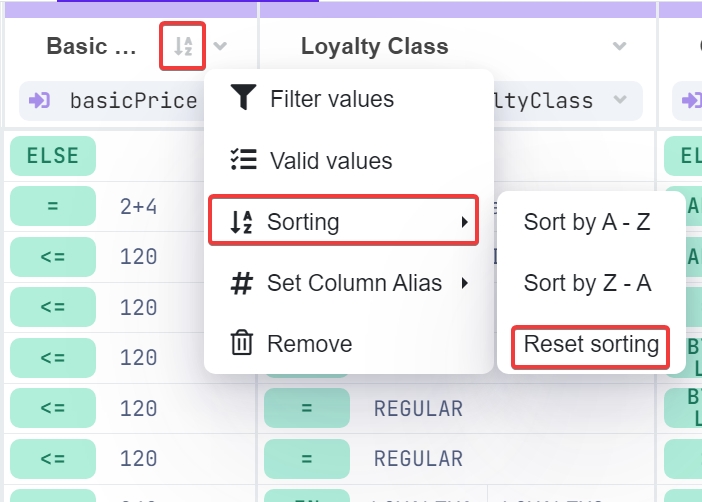

  • To remove sorting, click the arrow icon in the header, select Sorting, and choose Reset sorting.

Sorting Rules

When a column contains multiple data types, sorting follows specific rules. Here’s how DecisionRules handles sorting:

Descending Order

  1. Text: Zz-Aa

  2. Numbers: 9-0

  3. Operator: ELSE

  4. Number fields: (e.g., BTW)

  5. Dates

  6. Date fields: (e.g., BTW)

  7. Functions

  8. Operator: ANY

Ascending Order

  1. Operator: ELSE

  2. Numbers: 0-9

  3. Text: aA-zZ

  4. Number fields: (e.g., BTW)

  5. Dates

  6. Date fields: (e.g., BTW)

  7. Functions

  8. Operator: ANY

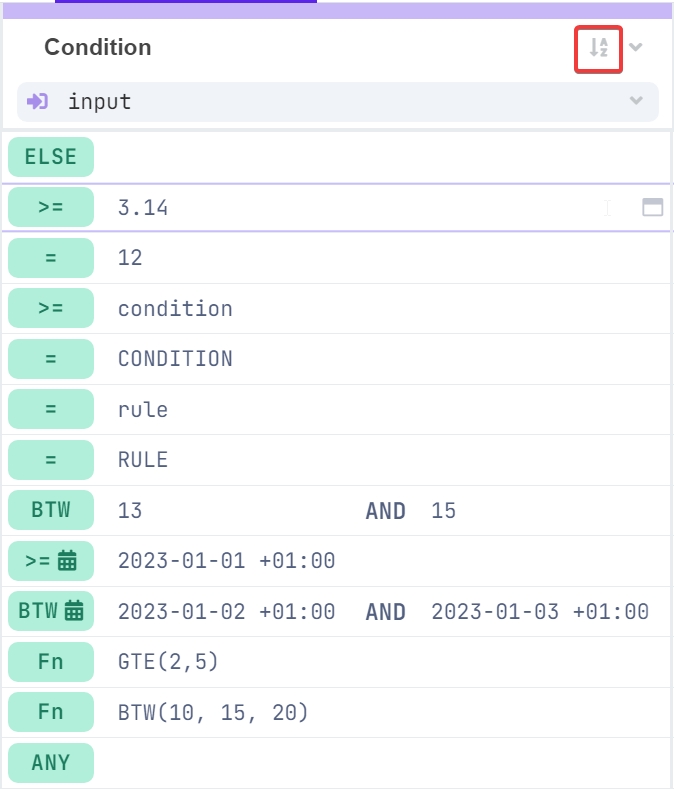

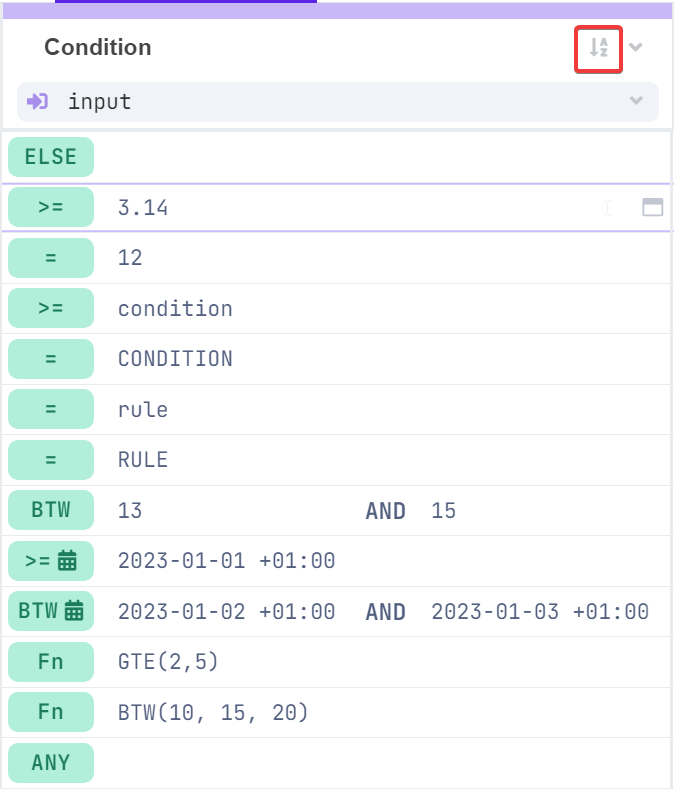

Example of Sort by A-Z option

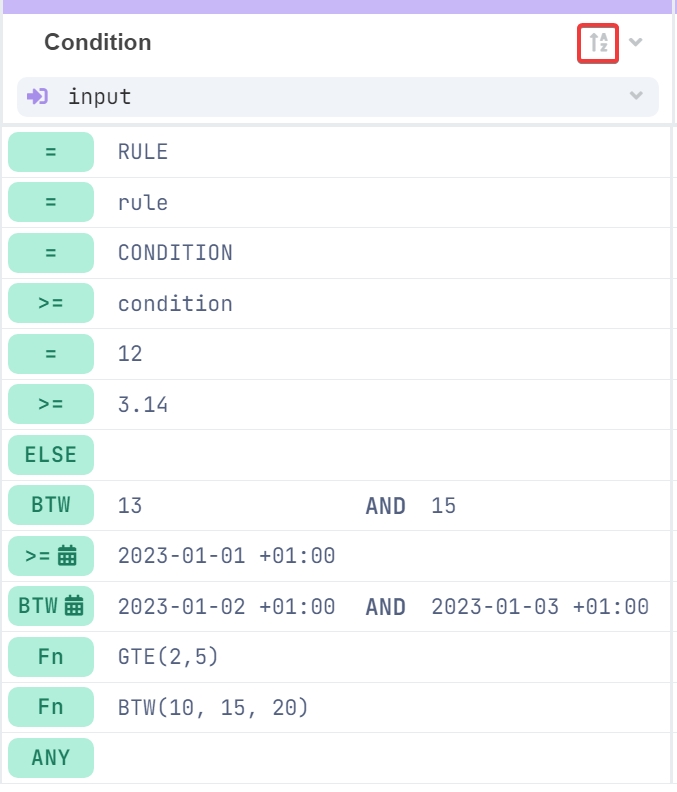

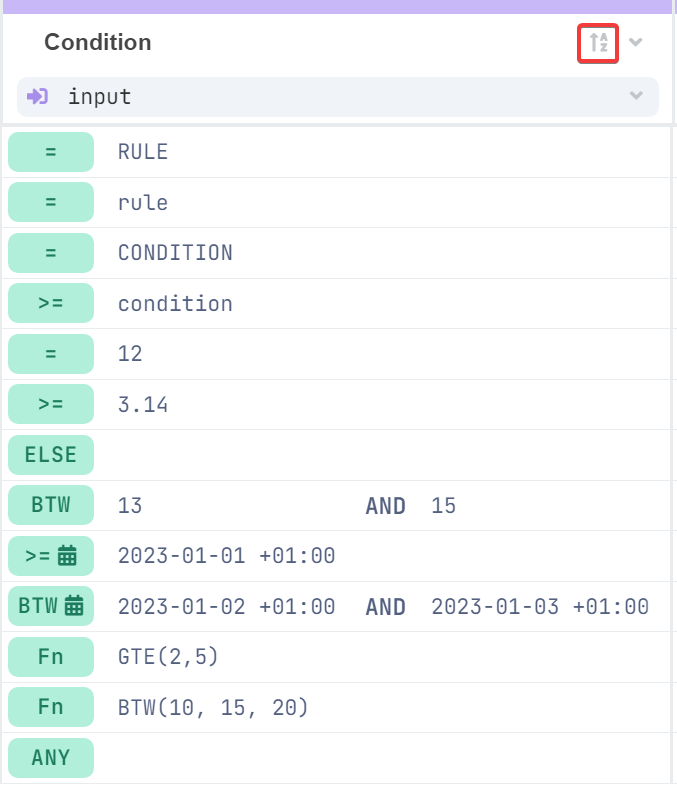

Example of Sort by Z-A option
